I had earlier performed a quick search to see if anyone had created a thread for the DGR coilovers bought in the group buy last year but didn't find anything. I finally got around to installing mine two weeks ago and have been driving around making minor adjustments. I'll post most of my measurements just to help out possibly.

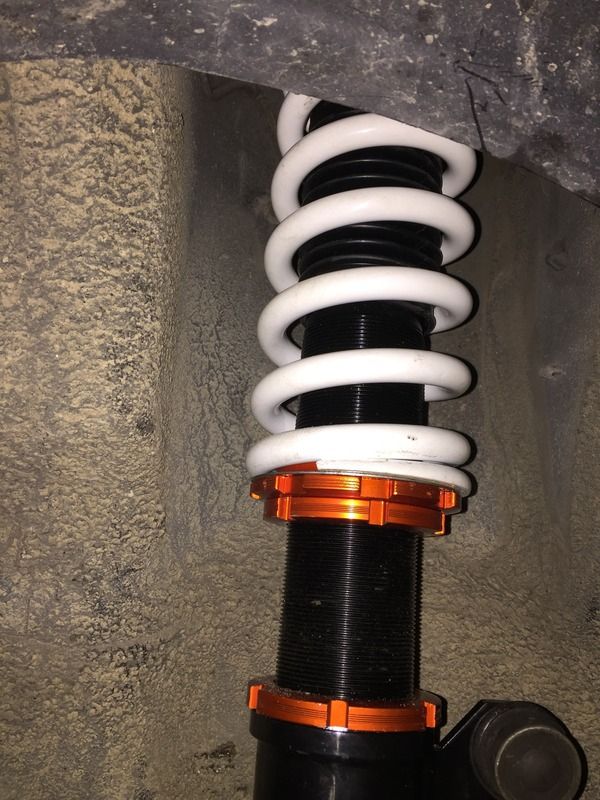

Fronts
Rear
Here are my settings,
Rear;
55.7mm between spring perch lowest collar nut and lower mount collar nut.
49.5mm from bottom of lower mount to shock bottom.
Dampening, 5 "clicks" from soft.
Front;
9.3mm Shock body protruding from the bottom.
Dampening, 5 "clicks" from soft.

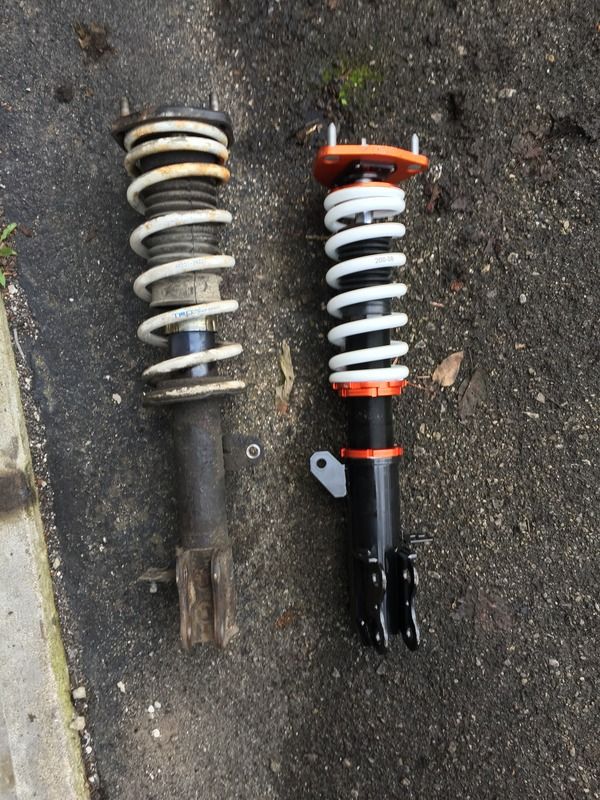

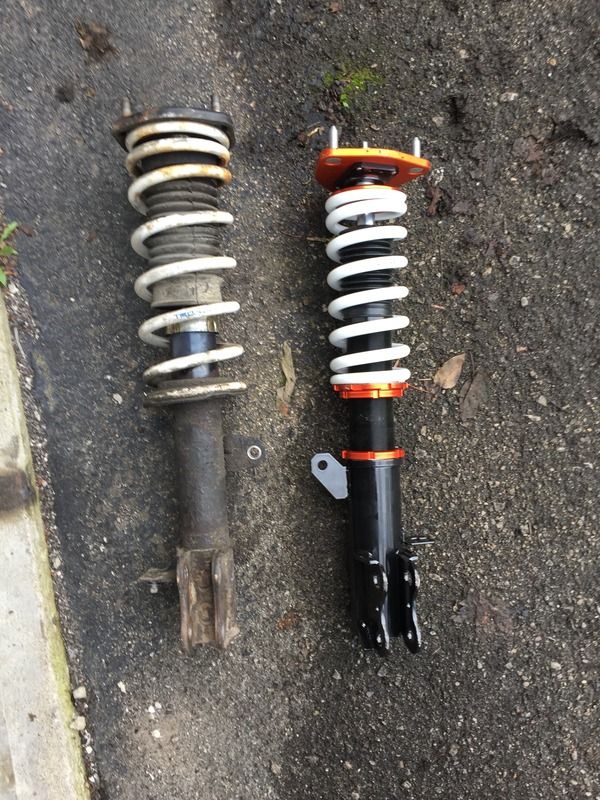

Picture of what the front looks like out of the box.

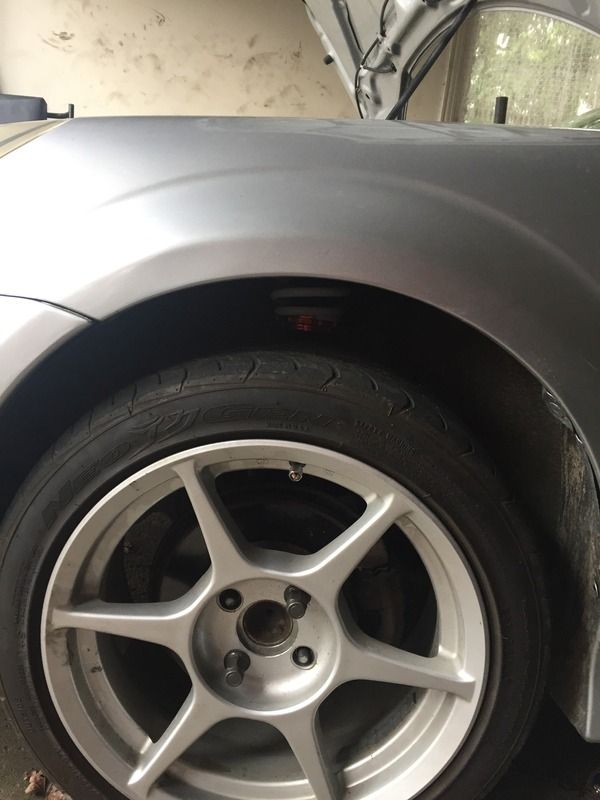

That's about two inches higher then what I am currently sitting at high is still .5" too high.
I still have to adjust the fronts further. As they are a little too high. I was hoping they would settle a bit but they seem to be keeping fairly rigid.
Fronts
Rear
Here are my settings,
Rear;
55.7mm between spring perch lowest collar nut and lower mount collar nut.
49.5mm from bottom of lower mount to shock bottom.
Dampening, 5 "clicks" from soft.
Front;
9.3mm Shock body protruding from the bottom.
Dampening, 5 "clicks" from soft.
Picture of what the front looks like out of the box.
That's about two inches higher then what I am currently sitting at high is still .5" too high.
I still have to adjust the fronts further. As they are a little too high. I was hoping they would settle a bit but they seem to be keeping fairly rigid.
